Product Description
Features:
Max load: 6000N
Speed range: 2.9-15mm/s
Minimum retracted length: stroke+160mm
IP rating: IP65
Stroke: 50-600mm
Hall sensor feedback option
Voltage: 24V
Noise level less than 48dB
Silver white color
Typical model data
|
Model |
Voltage
(V) |
Push Load (N) |
Pull Load (N) |
No- Load Speed (mm/s) |
Load Speed (mm/s) |
No-load Current (A) |
Load Current (A) |
Stroke
(mm) |
Installation Length (mm) |
Noise
(dB) |
|
MD60-100 |
24 |
6000 |
4000 |
4.2 |
2.9 |
0.5 |
2.5 |
100 |
260 |
≤ 48 |
|
MD60-150 |
24 |
3000 |
1500 |
5.6 |
4.5 |
0.5 |
1.8 |
150 |
310 |
≤ 48 |
|
MD60-200 |
24 |
2000 |
1000 |
9 |
7.6 |
0.5 |
1.4 |
200 |
360 |
≤ 48 |
|
MD60-300 |
24 |
1500 |
1500 |
13.5 |
11.5 |
0.5 |
1.7 |
300 |
460 |
≤ 48 |
|
MD60-350 |
24 |
500 |
500 |
16.5 |
15 |
0.5 |
1.1 |
350 |
510 |
≤ 48 |

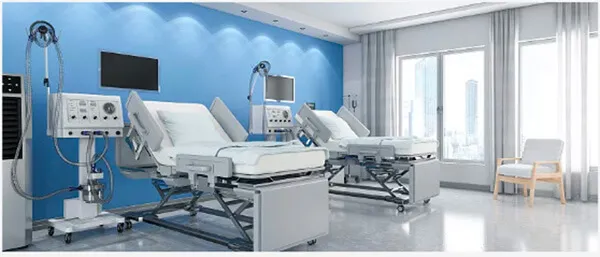

Typical Application:
