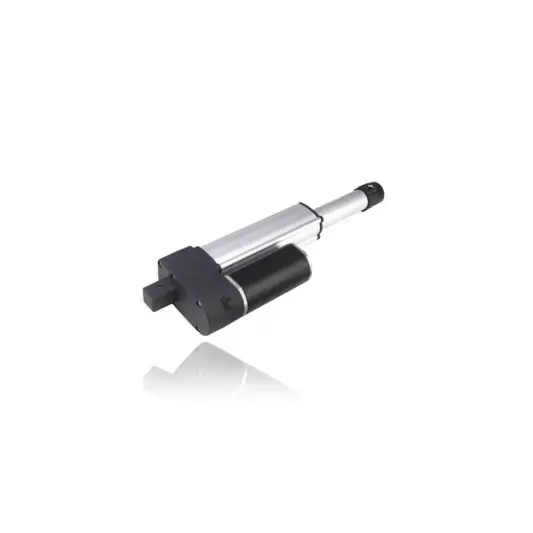

Product Description
Features:
Max load: 2000N
Speed range: 2.9-20mm/s
Minimum retracted length: stroke+116mm
IP rating: IP65
Stroke: 50-400mm
Hall sensor feedback option
Voltage: DC 24V
Noise level less than 48dB
Typical model data
|
Model |
Voltage
(V) |
Push Load (N) |
Pull Load (N) |
No- Load Speed (mm/s) |
Load Speed (mm/s) |
No-load Current (A) |
Load Current (A) |
Stroke
(mm) |
Installation Length (mm) |
Noise
(dB) |
|
MD20-100 |
24 |
2000 |
2000 |
7.5 |
5.3 |
1.1 |
3.0 |
100 |
216 |
≤ 48 |
|
MD20-150 |
24 |
1500 |
1500 |
11 |
7.6 |
1.1 |
3.2 |
150 |
260 |
≤ 48 |
|
MD20-200 |
24 |
2000 |
1000 |
23 |
16 |
1.1 |
3.2 |
200 |
316 |
≤ 48 |

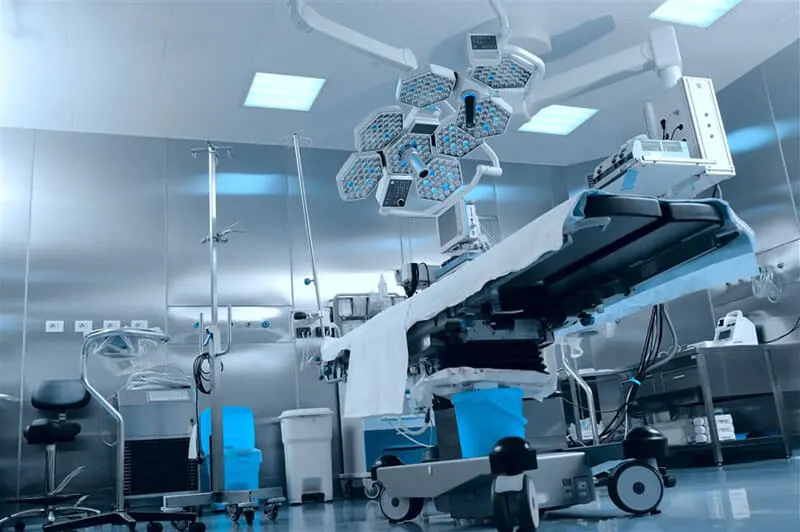

Typical application:
