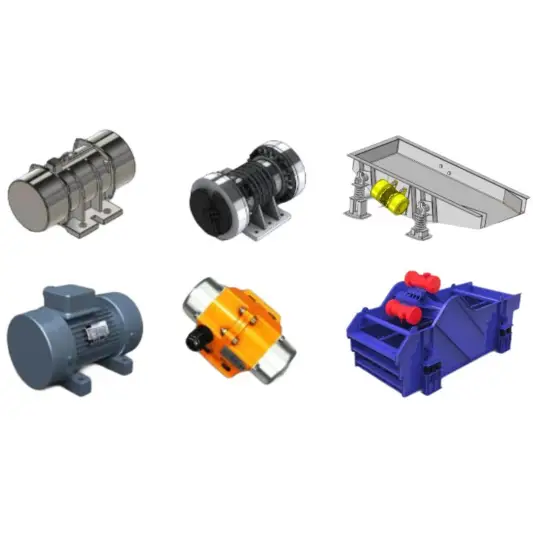

AC Vibration Motor series

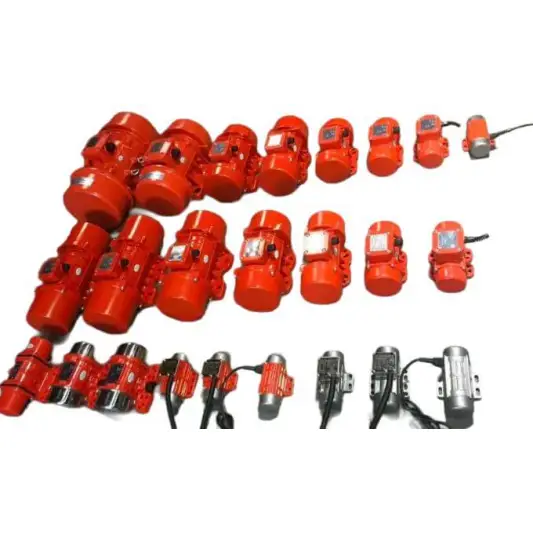

As 20 years AC vibration motor manufacturer, we provide the 0.45Kw-15Kw range power for kinds of industrial vibration equipment. The vibration motors are used to provide consistent vibration for laboratory, industrial shaker, screeners and classifiers, bins and hoppers. Small size vibration motors and big size vibration motors are on stock.

Inquire Now Next Product

Product Description

An AC vibration motor is a specialized type of electric motor designed to generate mechanical vibrations rather than continuous rotational motion. Its core principle involves the use of an unbalanced mass (often called an eccentric weight) attached to its rotating shaft. When the motor is powered by an alternating current (AC) supply, this unbalanced mass spins, creating a centrifugal force that causes the entire motor and any attached structure to vibrate.

There are two basic type: Horizontal vibration motor and Vertical vibration motor.

Motor Performance data:

Vol./Freq: 110V-690V/ 50/60Hz

Rated Speed: 750-3000RPM

Rated Power: 0.45kw-15kw

Insulation Class: F H

Typical model performance

Mode	Pole	Force		Voltage	Power	Speed
		（Kn）		(V/Hz)	(KW)	(RPM)
VM	2	16-150		220-690/ 50-60	1.5-15	3000
	4	14-100			0.45-6.3	1500
	6	8-130			0.45-7.0	1000
	8	4.5-70			4.5-5.1	750
VM-F		Flange side	End caps side	220-690/ 50-60
	2	3.65-12.5	1.15-2.5		0.37-1.25	3000
	4	3.55-13.6	1.55-3.4		0.25-1	1500

Advantages of AC Vibration Motors:

High Excitation Force: Capable of generating strong vibrations for heavy-duty applications.

Reliability and Durability: Designed for continuous operation in demanding conditions.

Adjustable Vibration Intensity: Allows fine-tuning of the vibration for specific processes.

Energy Efficient: Modern designs focus on converting electrical energy efficiently into mechanical vibration.

Low Maintenance: Generally have fewer moving parts that wear out compared to other mechanical vibrators.

Versatility: Can be used in a wide range of industrial applications.

Applications of AC Vibration Motors:

Material Handling:

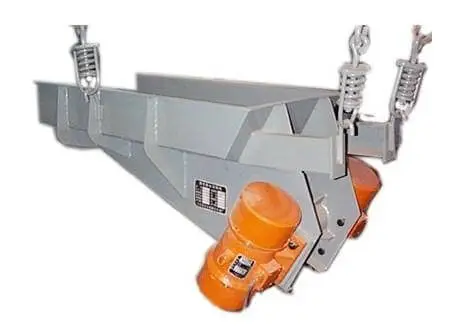

Vibratory Feeders: To control the flow and even distribution of bulk materials (grains, powders, aggregates, chemicals, food products).

Vibratory Conveyors: To move materials along a production line.

Hopper and Silo Discharge: To prevent material bridging or arching and ensure consistent flow from storage bins.

Screening and Sifting:

Vibrating Screens/Sieves: Used in mining, quarrying, food processing, pharmaceuticals, and chemical industries to separate materials by size.

Compacting and Settling:

Concrete Vibrators: To remove air bubbles and compact concrete in molds or during pouring, improving strength and finish.

Vibratory Tables: For compacting powders in packaging, settling contents in bags, or de-aerating materials.

Foundry and Metalworking:

Mold Shakeout: To remove sand from metal castings.

Deburring and Polishing: In vibratory finishing equipment.

Recycling:

Separating and classifying different recyclable materials.

Food Processing:

Sorting, sifting, and conveying food products.

Chemical and Pharmaceutical:

Mixing, blending, and tablet compression.

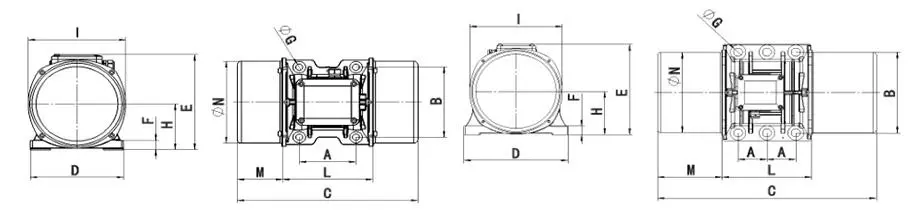

Size Drawing:

Application:
