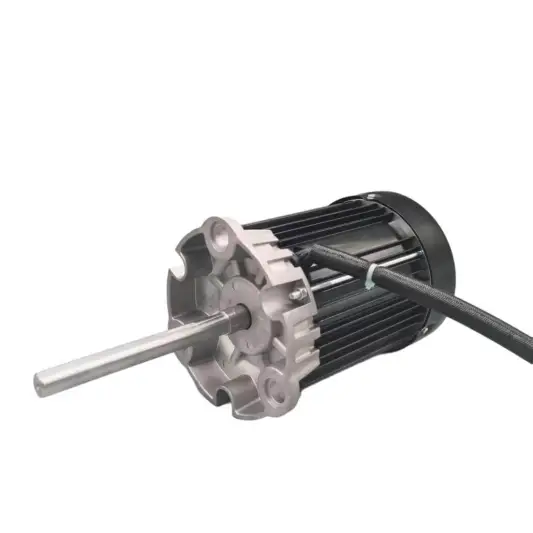

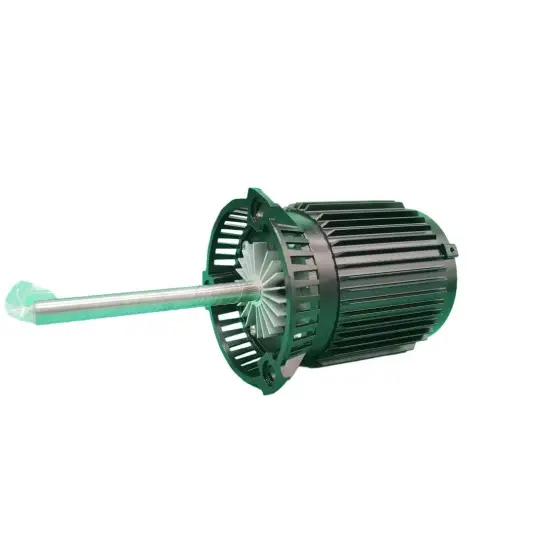

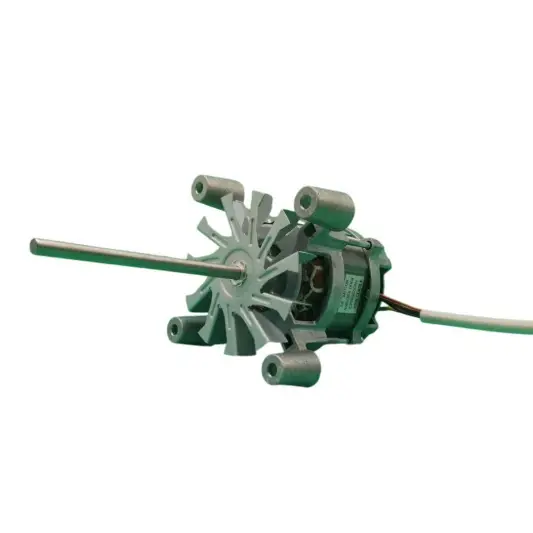

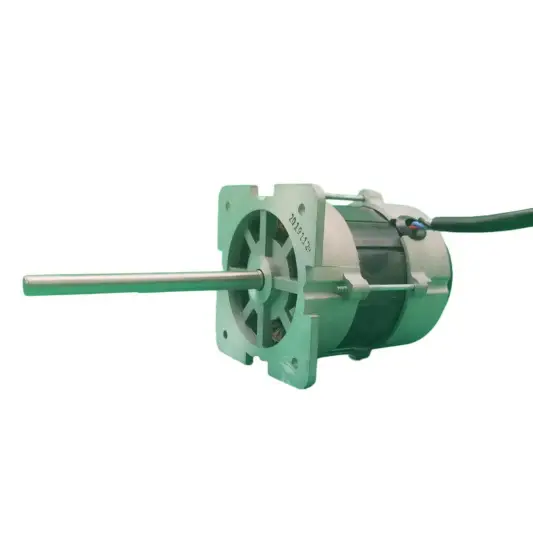

High Temperature AC Motor

AS94 series high temperature motor power range from 90w to 200w. 2800-2900RPM speed. They are mainly designed to drive high temperature blower & fan with different impeller to meet different wave soldering technology solution during the electronics assembly production. There are 4 standard types on stock and more special version motors can be tailor-made.
Inquire Now Next Product
High Temperature AC Motor
High Temperature AC Motor
High Temperature AC Motor
High Temperature AC Motor

Product Description

Motor Performance data:



Vol./Freq: 220V-380V/ 50/60Hz

Rated Speed: 2800-2900RPM

Rated Power: 90-200 W

Insulation Class: H



Typical model performance

The length refer to lamination length

Model

Length

Vol/Freq.

Current

 Power

Speed



  (mm)

（V/Hz）

(A)

(W)

(RPM)

AS9450

50

220/50

0.86

180

2950

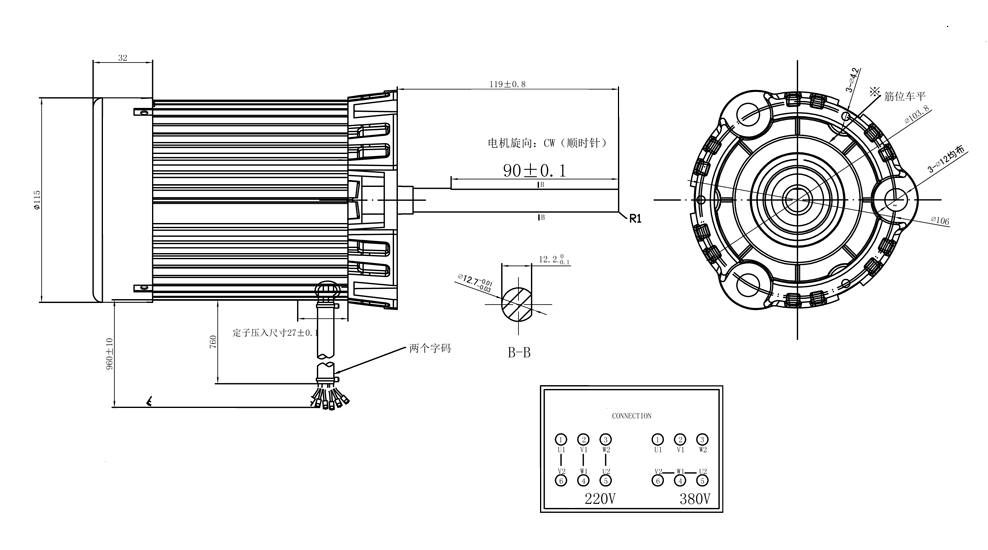

Size Drawing:
