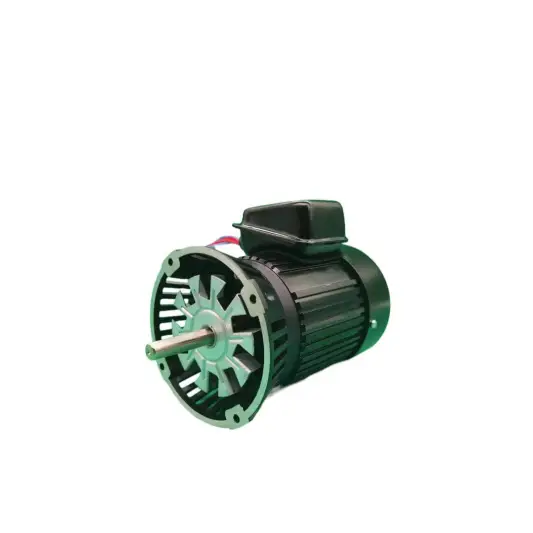

Single Phase Induction Motor

Single phase induction motor also named with capacitor starting induction motor or single phase asynchronous motor. The motor must be mounted with starting capacitor. The running capacitor is integrated in the terminal box. There are 2 winding connection for the CW and CCW rotation. The motors power range can be from 0.26hp to 4hp.
Inquire Now Next Product
Single Phase Induction Motor

Product Description

Motor Performance data:



Vol./Freq: 220V-380V/ 50/60Hz

Rated Speed: 2800-2900RPM

Rated Power: 150-3000 W

Insulation Class: H





Typical model performance

The length refer to lamination length

Model

Length

Vol/Freq.

Current

 Power

Speed



  (mm)

（V/Hz）

(A)

(W)

(RPM)

AS9440

40

220/50

0.32

152

2980

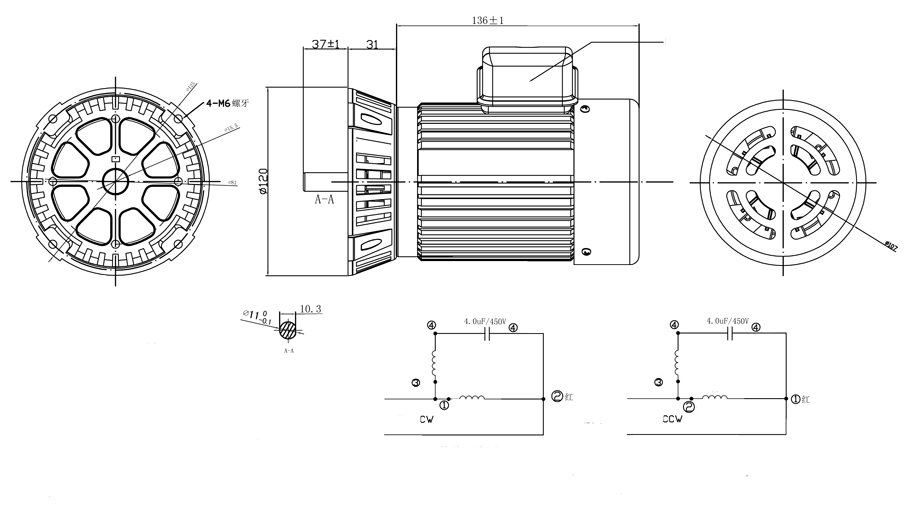

Size Drawing:
