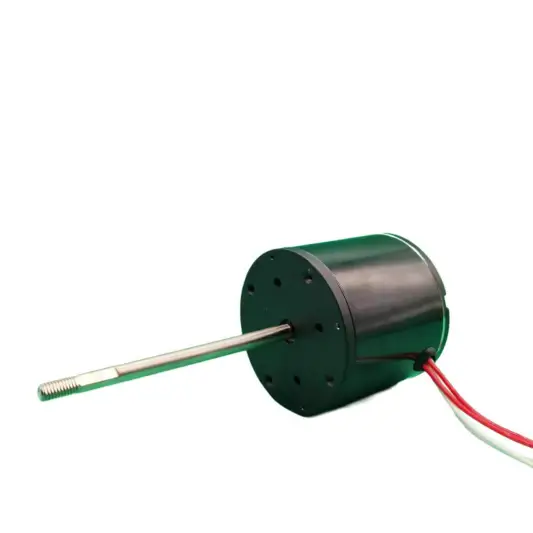

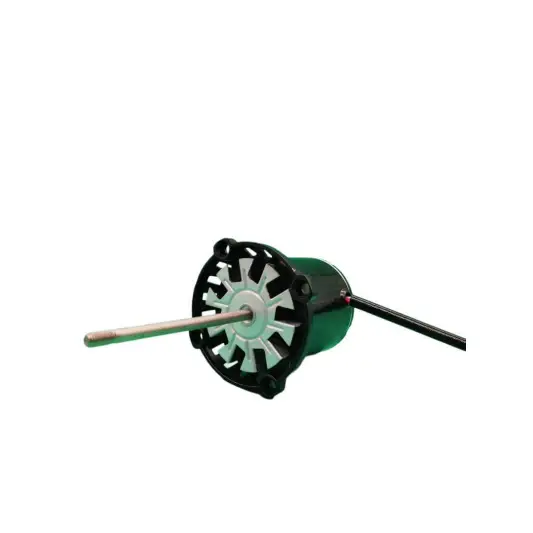

Ceiling Fan Motor

AS82 series ceiling fan motors power range from 45w to 90w. 2800-3000RPM speed.They are mainly designed to drive home ceiling fan and bathroom ceiling fan directly. The housing can be made of iron or aluminum alloy. Iron version is ideal for low cost option.
Inquire Now Next Product
Ceiling Fan Motor
Ceiling Fan Motor

Product Description

Motor Performance data:



Vol./Freq: 220V. 50Hz

Rated Speed: 2850RPM

Rated Power: 40 W

Insulation Class: H



Typical model performance

The length refer to lamination length

Model

Length

Vol/Freq.

Current

 Power

Speed



  (mm)

（V/Hz）

(A)

(W)

(RPM)

AS8216

16

230/50

0.16

31.5

2850

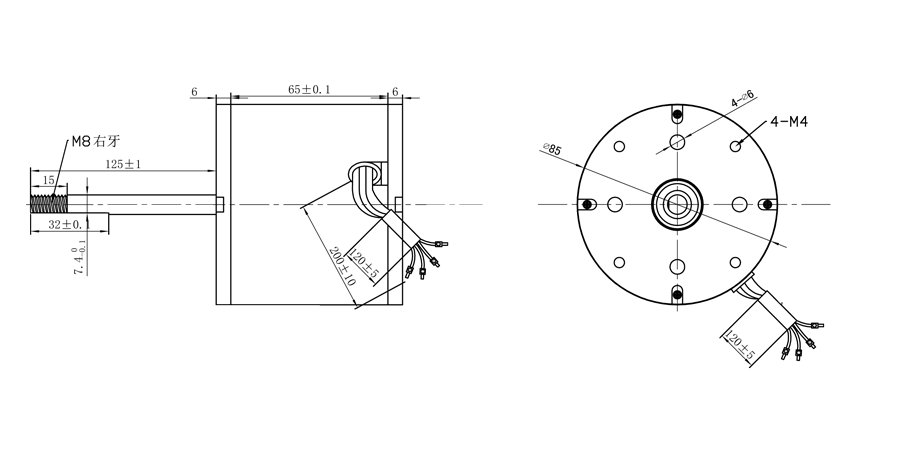

Size Drawing:
