Product Description
Motor Performance data:
Vol./Freq: 100-240V.50/60Hz
Rated Speed: 2600-3500RPM
Rated Power: 4-80 W
Insulation Class: B F H
The length refer to lamination length
Typical model performance
|
Model |
Length |
Vol/Freq. |
Current |
P1(input power) |
Speed |
Torque |
P2(output power) |
Eff. |
|
|
(mm) |
（V/Hz） |
(A) |
(W) |
(RPM) |
(mN.m) |
(W) |
(%) |
|
SP4812 |
12 |
100/50 |
0.11 |
6 |
2150 |
3.2 |
1 |
16.1 |
|
SP4816 |
16 |
100/50 |
0.13 |
8 |
2209 |
4.5 |
1.4 |
17.5 |
|
SP4825 |
25 |
100/50 |
0.19 |
11 |
2310 |
9.1 |
2.2 |
19.8 |
|
SP5812 |
12 |
120/60 |
0.15 |
14 |
2283 |
2 |
0.5 |
3.4 |
|
SP6016 |
16 |
230/50 |
0.17 |
22 |
2350 |
30.2 |
6 |
19.3 |
|
SP6020 |
20 |
230/50 |
0.26 |
30 |
2375 |
39.9 |
8 |
21.2 |
|
SP6025 |
25 |
230/50 |
0.32 |
36 |
2380 |
49.7 |
10 |
23.6 |
|
SP6030 |
30 |
230/50 |
0.37 |
45 |
2400 |
58.3 |
13 |
25.1 |
|
SP6040 |
40 |
230/50 |
0.48 |
63 |
2425 |
67.5 |
17 |
27.2 |
|
SP6050 |
50 |
230/50 |
0.59 |
68 |
2520 |
76 |
20 |
29.2 |

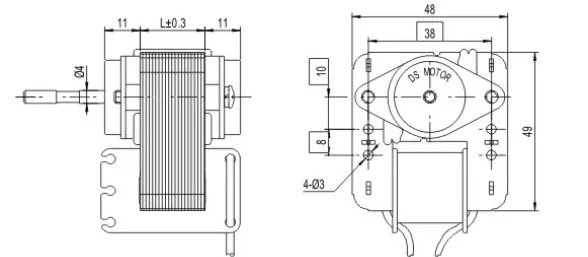

SP48 Motor Size Drawing:

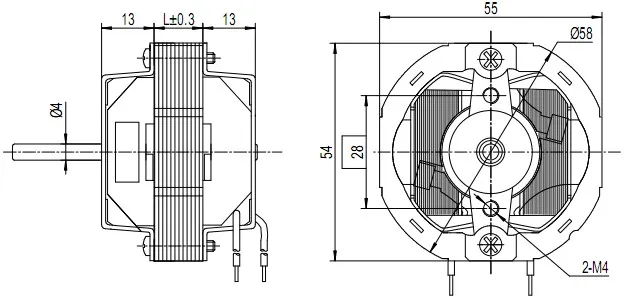

SP58 Motor Size Drawing:
SP60 Motor Size Drawing:
