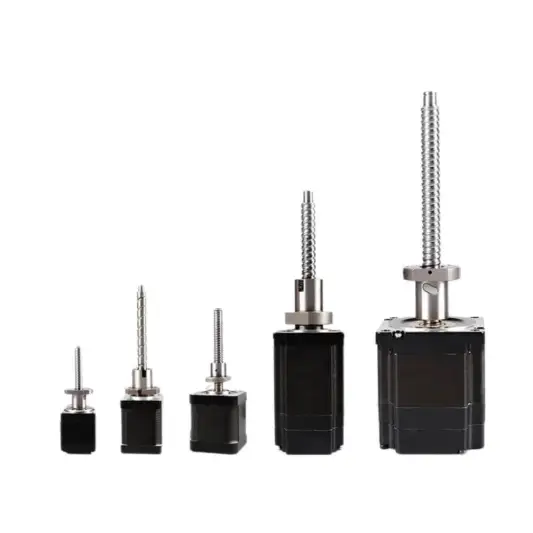

Product Description
High performance, low noise, high precision position. Applications for medical equipment, semiconductor equipment, valve control, X-Y workbench, hand-held instruments or any place where precise linear motion is required.
Linear Stepper Motor Performance data:
Motor Size Range: from 20mm to 86mm
Stroke Range: 9mm-63.5mm
Force: 60N-2400N
Linear Speed: 2mm/s-200mm/s
Motor body length, screw shaft length, pitch can be customized according to customer requirements.
Typical model data
|
Motor Size |
Lead Screw Diameter (mm) |
Pitch (mm) |
Body Length (mm) |
Current (A) |
Max Force (N) |
|
NEMA8 |
4
|
1 |
38 |
0.5 |
60 |
|
2 |
42 |
0.5 |
|||
|
NEMA11 |
6 |
1 |
34 |
1 |
120 |
|
2 |
|||||
|
6 |
|||||
|
8 |
1 |
45 |
1 |
||
|
2 |
|||||
|
NEMA17 |
8 |
1 |
34 |
1.5 |
300 |
|
2 |
40 |
1.5 |
|||
|
12 |
2 |
48 |
2.5 |
||
|
5 |
60 |
2.5 |
|||
|
10 |
60 |
2.5 |
|||
|
NEMA23 |
12 |
2 |
45 |
3 |
900 |
|
4 |
54 |
3 |
|||
|
5 |
65 |
4 |
|||
|
10 |
76 |
4 |
|||
|
NEMA34 |
16 |
5 |
76 |
6 |
2400 |
|
10 |
|||||
|
16 |
114 |
6 |
|||
|
20 |

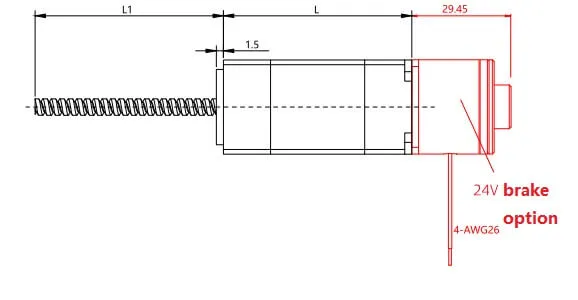

Size Drawing:
