Product Description
Standard Hybrid Stepper Motors are a widely used type of stepper motor that combine the benefits of permanent magnet (PM) and variable reluctance (VR) stepper motors. They are known for their high precision, reliable performance, and moderate cost, making them ideal for applications where precise positioning is required without the complexity or cost of servomotors.

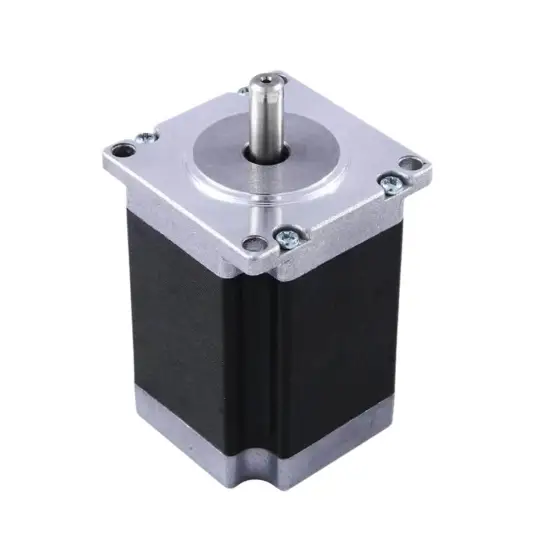

NEMA23 Standard Hybrid Stepper Motors series are standard 57mm*57mm size. 2 phase with 4 lead wires, 6wires and 3 phase with 3 lead wires. Suitable for medium power demand applications such as automation equipment, CNC machine tools, packaging machines, printing equipment, etc.
They can be mounted with 60mm diameter planetary gearbox to get more output torque.
A hybrid stepper motor typically features:
| Component | Description |
|---|---|
| Rotor | Made with permanent magnets and finely toothed poles. Usually has 50 teeth. |
| Stator | Contains multiple windings arranged in phases (usually 2 or 4). |
| Step Angle | Typically 1.8° per step (200 steps/revolution), but 0.9° and others are available. |
| Drive Type | Driven by a stepper driver that sends precise pulse signals. |
Motor Performance data:
Step Accuracy: 1.8°/step±0.09°
Temperature Rise: 80℃
Ambient Temperature Range ：-20 - 55
Insulation Resistance: 100MΩ MIN 500V DC
Output shaft option: D shape,round shape, key,pinion
Mountings options: encoder, brake, planetary gearbox
| Parameter | Typical Range |
|---|---|
| Step Angle | 1.8°, 0.9°, or less |
| Holding Torque | 0.1 – 10 Nm |
| Rated Voltage | 2 – 12V (varies by model) |
| Number of Phases | 2-phase (most common), 3- or 5-phase |
| Shaft Types | Round, D-cut, or keyed |
| Frame Sizes | NEMA 8, 11, 17, 23, 34, 42, etc. |
| Feature | Standard Hybrid Stepper | Hybrid Stepper with Encoder |
|---|---|---|
| Control Type | Open-loop | Closed-loop |
| Position Feedback | No | Yes |
| Accuracy Under Load | Moderate | High |
| Cost | Lower | Higher |
| Best For | Simple, repeatable tasks | Precise, mission-critical tasks |
High precision without feedback (open-loop)
Low speed, high torque performance
Stable and repeatable positioning
Simple control via pulse signals
Detent torque (holding torque when powered off)
|
Series Model |
Shaft diameter(mm) |
shaft length(mm) |
Features |
||||
|
SL57S254A |
6.35 |
21 |
flat shape 5.85*20 |
||||
|
SL57S277A8 |
8 |
21 |
flat shape 7.5*16 |
||||
|
SL57S277B1 |
6.35 |
30.6 |
flat shape 5.85*30 |
||||
|
SL57S283A |
8 |
30.6 |
flat shape 7.5*30 |
||||
|
SL57S2102A1 |
8 |
35 |
flat shape 7.5*28 |
||||
|
Series Model |
Motor Length |
Related current |
Phase Resistance |
Phase Inductance |
Holding Torque |
Lead wire |
Motor Weight |
|
(mm) |
(A) |
(Ω) |
(mH) |
(N.cm) |
(Number) |
(kg) |
|
|
|
|
|
|
|
|
|
|
|
SL57S254A |
54 |
4 |
0.3 |
1.8 |
125 |
4 |
0.7 |
|
SL57S277A8 |
77 |
4 |
0.57 |
2 |
220 |
4 |
1.1 |
|
SL57S277B1 |
77 |
4 |
0.73 |
2.65 |
260 |
6 |
1.2 |
|
SL57S283A |
83 |
4 |
2.3 |
9.8 |
240 |
4 |
1.1 |
|
SL57S2102A1 |
102 |
5 |
0.83 |
3.36 |
350 |
4 |
1.5 |
|
Series Model |
Shaft diameter(mm) |
shaft length(mm) |
Features |
||||
|
SL57S340A |
6.35 |
21 |
0.5*10 |
||||
|
SL57S353A |
6.35 |
21 |
0.5*10 |
||||
|
SL57S376A |
8 |
21 |
0.5*10 |
||||
|
SL57S3102A |
8 |
21 |
0.5*10 |
||||
|
Series Model |
Motor Length |
Related current |
Phase Resistance |
Phase Inductance |
Holding Torque |
Lead wire |
Motor Weight |
|
(mm) |
(A) |
(Ω) |
(mH) |
(N.cm) |
(Number) |
(kg) |
|
|
|
|
|
|
|
|
|
|
|
SL57S340A |
40 |
5.2 |
1.3 |
1.7 |
0.45 |
3 |
0.9 |
|
SL57S353A |
53 |
5.6 |
1.5 |
1.6 |
0.9 |
3 |
0.75 |
|
SL57S376A |
76 |
5.8 |
9.5 |
1 |
1.5 |
3 |
1.1 |
|
SL57S3102A |
102 |
5.8 |
3.5 |
1.7 |
2 |
3 |
1.57 |
NEMA 17 Hybrid Stepper Motor – Common in 3D printers
NEMA 23 Hybrid Stepper – Widely used in CNC and automation
NEMA 34 Hybrid Stepper – High torque applications

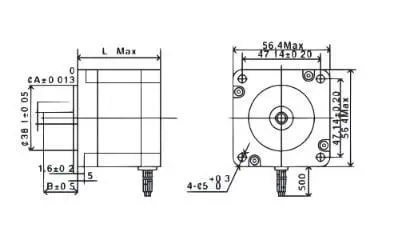

Size Drawing:
