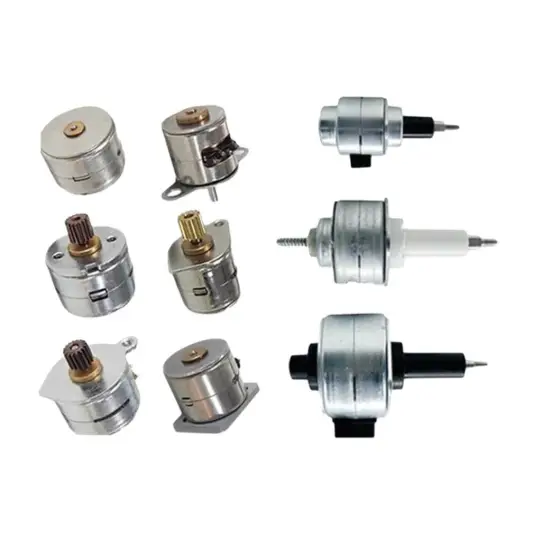

PM Stepper Motor

We offer permanent magnet stepper motor and motor with lead screw to customers. 20mm diameter, 25mm diameter, 35mm diameter series are on stock. The step angle by 7.5° and 15°. Many innovative applications including: office equipment, photographic systems, optical electronic equipment, valve controls, ATM equipment, CNC machines, automatic winding machines, instrumentation and medical equipment.

Inquire Now Next Product

Product Description

Linear Stepper Motor Performance data:

Motor Size Range: 20mm, 25mm, 35mm

Stroke Range: 8mm, 22mm, 24mm

Force: 10N-60N

Motor body length, screw shaft length, pitch can be customized according to customer requirements.

Typical model data

Item	Unit	Model
Item	Unit	220mm	225mm	335mm
Rated Voltage	V	12	12	12
Resistance	Ω	47±5%	53±3%	35±10%
Current	mA	≤300	≤200	≤400
Phase		2	2	2
Step Angle	Deg	15	15	7.5
Starting Frequency	PPS	≥400	≥500	≥450
Operating Frequency	PPS	≥600	≥600	≥600
Max Stroke	mm	8	24	22
Working Temperature	℃	-40 - 125	-40 - 125	-40 - 125
Force	N	10	20	60

Size Drawing:
