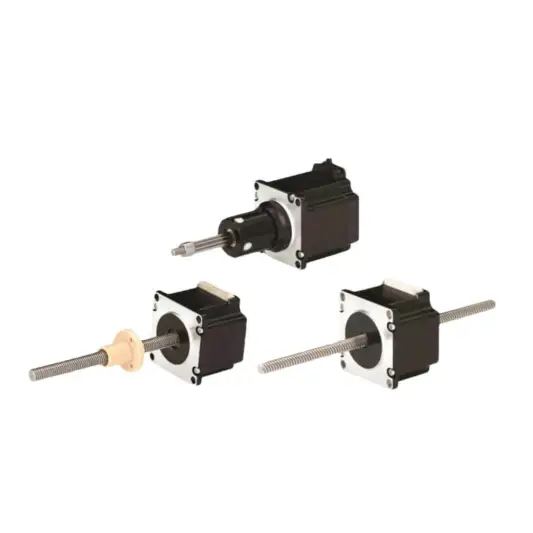

Product Description
Multiple options: different size of motors, different types of lead screws, different type of nuts. Offer customization such as an brake and an encoder option. High performance, low noise, high effective.
Linear Stepper Motor Performance data:
Motor Size Range: from 20mm to 86mm
Stroke Range: 9mm-63.5mm
Force: 10N-2400N
Linear Speed: 1mm/s-150mm/s
Self-locking Force: 2N-3000N
Typical model data
|
Motor size |
Lead screw diameter (mm) |
Pitch (mm) |
Step (mm) |
Force (N) |
Speed (mm/s) |
Stroke (mm) |
|
SL20S230 |
3.5
|
0.6096 |
0.003048 |
44-50 |
1-5 |
9, 12.7, 19.5, 25.4, 31.8, 38.1 |
|
1.2192 |
0.006096 |
20-30 |
1-10 |
|||
|
SL20S242 |
3.5 |
2 |
0.01 |
15-25 |
6-15 |
|
|
4 |
0.02 |
10-15 |
12-30 |
|||
|
SL28S234 |
4.77 |
0.635 |
0.003175 |
70-95 |
1-6 |
9, 12.7, 19.1, 25.4, 31.8, 38.1, 50.8, 63.5 |
|
1.27 |
0.00635 |
50-70 |
1-12 |
|||
|
2.54 |
0.0127 |
35-50 |
8-25 |
|||
|
5.08 |
0.0254 |
25-35 |
15-50 |
|||
|
SL28S245 |
5.56 |
9.7536 |
0.048768 |
10-15 |
30-100 |
|
|
SL35S234 |
5.56 |
0.6096 |
0.003048 |
120-150 |
1-5 |
12.7, 19.1, 25.4, 31.8, 38.1, 50.8, 63.5 |
|
6.35 |
1.27 |
0.00635 |
100-130 |
1-10 |
||
|
2.54 |
0.127 |
70-90 |
8-20 |
|||
|
3.175 |
0.0015875 |
60-70 |
10-25 |
|||
|
5.08 |
0.0254 |
50-65 |
15-40 |
|||
|
6.35 |
0.03175 |
45-58 |
20-50 |
|||
|
8.4582 |
0.042291 |
35-45 |
25-65 |
|||
|
SL35S248 |
5.56 |
9.7536 |
0.048768 |
20-30 |
30-75 |
|
|
6.35 |
12.7 |
0.0635 |
18-25 |
35-100 |
||
|
8 |
2 |
0.01 |
80-100 |
1-15 |
||
|
4 |
0.02 |
60-75 |
12-30 |
|||
|
8 |
0.04 |
30-40 |
25-60 |
|||
|
20 |
0.1 |
12-15 |
60-150 |
|||
|
SL42S234 |
5.56 |
0.6096 |
0.003048 |
230 |
1-4 |
12.7, 19.1, 25.4, 31.8, 38.1, 50.8, 63.5 |
|
6.35 |
1.27 |
0.00635 |
150-230 |
1-8 |
||
|
2.54 |
0.127 |
100-160 |
6-20 |
|||
|
SL42S240 |
3.175 |
0.0015875 |
80-120 |
10-24 |
||
|
5.08 |
0.0254 |
50-80 |
15-40 |
|||
|
6.35 |
0.03175 |
40-65 |
18-50 |
|||
|
8.4582 |
0.042291 |
30-45 |
25-65 |
|||
|
SL42S248 |
5.56 |
9.7536 |
0.048768 |
30-40 |
30-75 |
|
|
6.35 |
12.7 |
0.0635 |
25-30 |
35-100 |
||
|
SL42S260 |
8 |
2 |
0.01 |
150-180 |
1-15 |
|
|
4 |
0.02 |
95-120 |
12-30 |
|||
|
8 |
0.04 |
50-65 |
20-60 |
|||
|
20 |
0.1 |
18-25 |
50-150 |
|||
|
SL57S245 |
9.525 |
0.635 |
0.003048 |
500-600 |
1-4 |
12.7, 19.1, 25.4, 31.8, 38.1, 50.8, 63.5 |
|
1.27 |
0.00635 |
350-420 |
1-8 |
|||
|
1.5875 |
0.0079375 |
260-300 |
1-10 |
|||
|
SL57S255 |
2.116 |
0.010508 |
250-320 |
6-15 |
||
|
2.54 |
0.127 |
240-300 |
6-15 |
|||
|
3.175 |
0.015875 |
200-260 |
8-25 |
|||
|
SL57S265 |
4.232 |
0.02116 |
280-350 |
10-30 |
||
|
5.08 |
0.0254 |
250-300 |
15-35 |
|||
|
9.525 |
0.047625 |
140-170 |
25-70 |
|||
|
10.16 |
0.0508 |
120-150 |
30-75 |
|||
|
|
|
25.4 |
0.127 |
25-30 |
75-200 |
|
|
SL57S275 |
10 |
2 |
0.01 |
550-660 |
5-15 |
|
|
4 |
0.02 |
350-420 |
10-30 |
|||
|
10 |
0.05 |
150-180 |
30-75 |
|||
|
SL86S276 |
15.875 |
2.54 |
0.0127 |
150-1000 |
1-10 |
12.7, 19.1, 25.4, 31.8, 38.1, 50.8, 63.5 |
|
3.175 |
0.015875 |
900-1300 |
6-15 |
|||
|
5.08 |
0.0254 |
550-700 |
10-25 |
|||
|
SL86S2114 |
6.35 |
0.03175 |
800-1000 |
15-35 |
||
|
12.7 |
0.0635 |
350-450 |
25-75 |
|||
|
25.4 |
0.127 |
200-300 |
60-150 |
