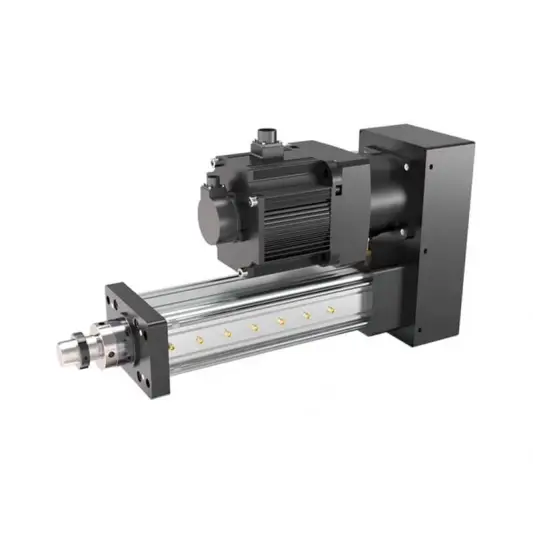

BEC series servo linear actuator

BEC series servo linear actuators use timing belt drive for high performance linear motion control. The electric motors can be servo motors or AC PMSM motors. The electric motors designed in parallel with the linear actuator axis. The actuator outer housing is aluminum or steel. The force range from 0.4kN to 360kN and size from 40mm to 220mm. High performance linear actuator selection.

Inquire Now Next Product

Product Description

Features:

Motor Type: Servo motor/AC motor

Push/pull load: 0.4-360kN

Stroke Length: 50-3000mm

Drive Screw Type: Acme Screw/Ball Screw/Roller Screws

Speed: Up to 1250mm/s

Temperature: -40℃- 85℃

Duty Cycle: 30%-100%

Type of Protection: IP54

The front attachments, mounting flange, bottom attachments CNC as following selection:

Typical Model Data:

Model	Screw Pitch (mm)	Cylinder Outer Size (mm)	Input Power (kW)	Screw Rated Load (kN)	Max Speed (mm/s)	Max Stroke (mm)	Max Load (kN)	Duty Cycle (%)
BEC40	2/2.5	44*44	0.1-0.2	2.1	125	300	0.4	25-100
BEC60	5/10/16/20	60*60	0.1-0.75	5.5-13.8	1000	1050	5	30-100
BEC80	5/10/25	80*80	0.4-1.5	12.3-29.5	1250	1500	15	30-100
BEC94	5/10/20	94*94	1.5-2	19-48	832	1800	25	30-100
BEC110	5/10/20	109*109	1.5-3	21-53	832	1800	30	30-100
BEC132	10/20	132*132	2-5.5	67-71	666	2000	60	30-100
BEC168	10/20	Φ168	3-7.5	67-71	500	2500	85	50-100
BEC220	10/20	Φ240	5.5-15	85-151	500	3000	360	50-100
