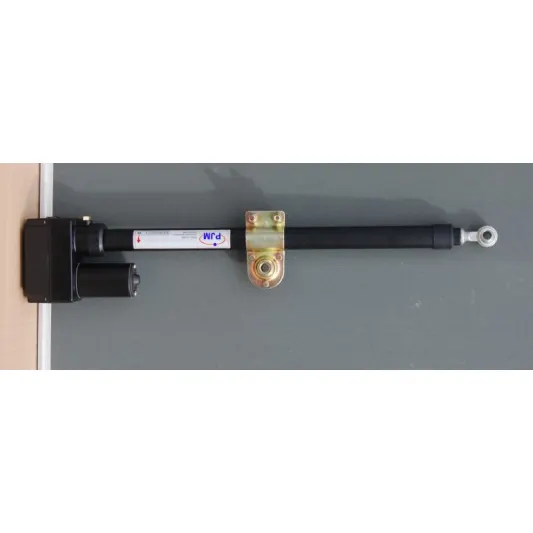

1. QARL Actuators Series Performance
Features:
ACME Screw Type
High precision
Antirust Quality and High Durability
- 26C cold resistance
Max. Load: 3500N
Max Speed:10mm/s
Economic type satellite actuator
For above 1.8m diameter satellite dish tracking
Super-Hold high static load capacity
Original Satellite Antenna Actuator
Super-Grip heavy duty bracket
IP class:IP54
Specification:
Model: QARL series/Heavy duty actuator
Motor type: DC brush motor
Input : 24/36VDC
Load Capacity: 3000N
Standard Strock Length: 450mm/600mm/900mm
Drive screw: ACME
Full Load Speed: 5mm / sec
Duty Cycle: 20%
Temperature: -26˚C~65˚C(-15˚F~150˚F)
Limit Switch: Adjustable
Sensor: reed switch sensor
Static Load: 4500N
Duty Cycle: 10%

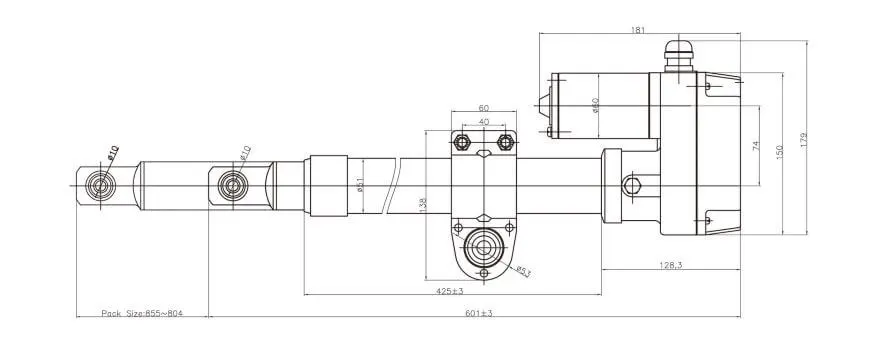

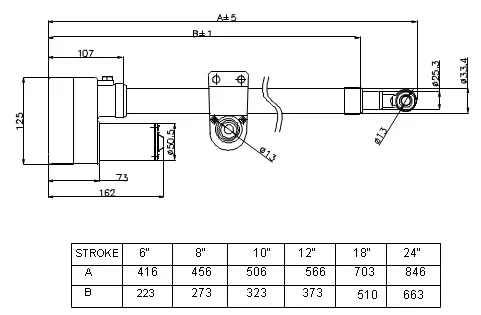

Size Drawing:

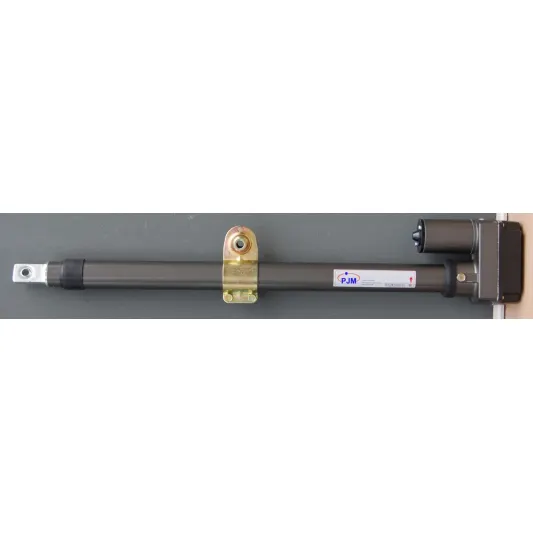

2. HARL Actuator Series Performance
Features:
ACME Screw Type
Max. Load: 2000N
Max Speed:10mm/s
Economic type satellite actuator
For small satellite dish tracking(less than 1.2m diameter satellite dish)
Super-Hold high static load capacity
Original Satellite Antenna Actuator
Super-Grip heavy duty bracket
IP class:IP54
Specification:
Model: HARL series/ Regular duty actuator
Motor type: DC brush motor
Input: 24/36VDC
Load Capacity: 1500N
Standard Strock Length: 450mm/600mm/900mm
Drive screw: ACME
Full Load Speed: 5mm / sec
Duty Cycle: 20%
Temperature: -26˚C~65˚C(-15˚F~150˚F)
Limit Switch: Adjustable
Sensor: reed switch sensor
Static Load: 4500N
Duty Cycle: 10%
Size Drawing:

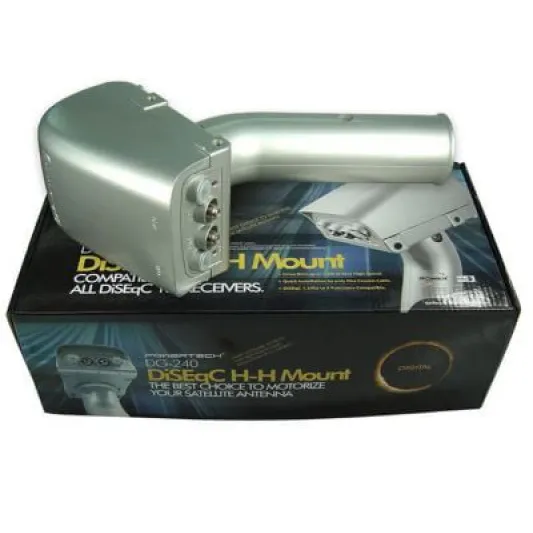

3. DiSEqC motor Performance Features
Features:
Special Design for Receiver with DiSEqC 1.2
Only One Coaxial Cable Control
Go To X Function
High Efficiency
Compact Structure
Ultra Low Noise
Easy Installation with LED Indicator
Manual EAST / WEST button
For Dish up to 1.2M
Specification:
Model: DG160/DG320
Gear: Plastic/ Metal
Antenna Diameter: 1.2M Max
Length of Motor Tube: 18cm
Azimuth Angle: 75°EAST ~ 75°WEST ( 150° ) Adjustable
Elevation Angle: 10˚~75˚
Input / Output Voltage: 13 / 18 VDC
Power Consumption: 50 mA ( Standby mode )
200mA ( Normal)
350 mA ( Max.)
Rotation Speed: 1.9˚ / sec ( at 13V) ; 2.5 ˚/ sec ( at 18v)
Satellite Positions: 60
Connector: F Type
Command Protocol: DiSEqC 1.2
Resynchronize Function: YES
Goto Position 0: YES
Goto X Function: YES
Positioning Sensor: Hall Effect Sensor
EAST / WEST Limit: Adjustable Hardware and Programmable Software
Manual Button: EAST / WEST
