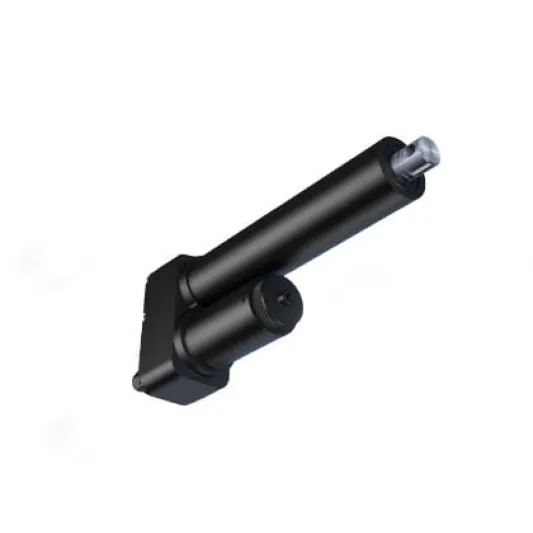

Product Description
Features:
Motor Type: DC brush motor
Input Voltage: 12V/24V/48V
Push/pull load: 250Kg-1000Kg
Stroke Length: 50-700mm
Drive Screw Type: Ball Screw
Speed: Up to 50mm/s
Limit Switch: Built-in
Feedback: Integrated controller supporting CAN bus
Overload and over heating protection
Temperature: -40℃- 85℃
Duty Cycle: 20%
Type of Protection: IP66
Typical model data
|
Model |
Voltage (V) |
Dynamic Load (Kg) |
Static Load (Kg) |
No- Load Speed (mm/s) |
Load Speed (mm/s) |
Stroke
(mm) |
Installation Length (mm) |
Duty Cycle (%) |
|
CLA25 |
12 |
250 |
250 |
7.5-28 |
8-20 |
100-610 |
Stroke+200 |
25 |
|
CLA25 |
24 |
250 |
250 |
7.5-28 |
8-20 |
100-610 |
Stroke+200 |
25 |
|
CLA45 |
24 |
450 |
1000 |
26-51 |
25-50 |
50-700 |
Stroke+210 |
20 |
|
CLA45 |
48 |
450 |
1000 |
26-51 |
25-50 |
50-700 |
Stroke+210 |
20 |
|
CLA100 |
24 |
1000 |
2000 |
22-43 |
20-42 |
50-700 |
Stroke+250 |
20 |
|
CLA100 |
48 |
1000 |
2000 |
22-43 |
20-42 |
50-700 |
Stroke+250 |
20 |

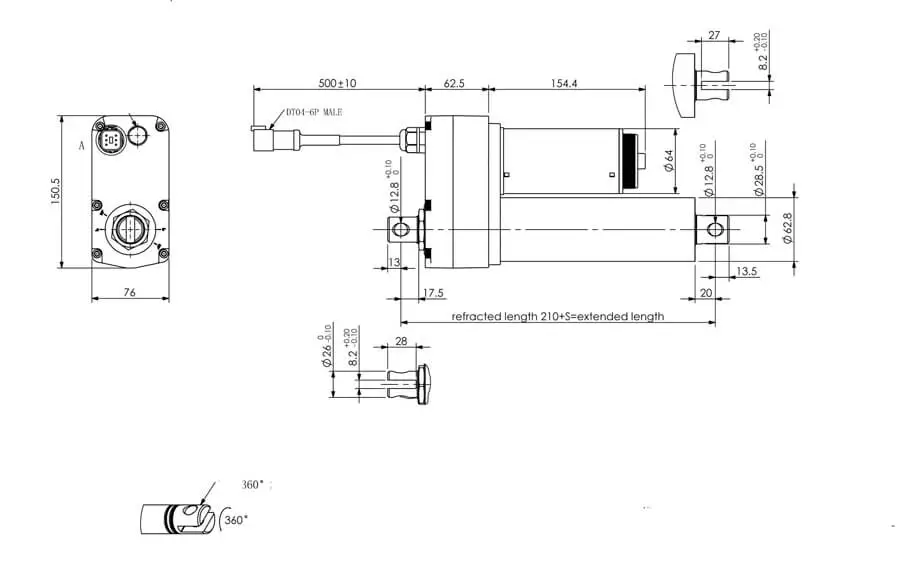

Size Drawing:
