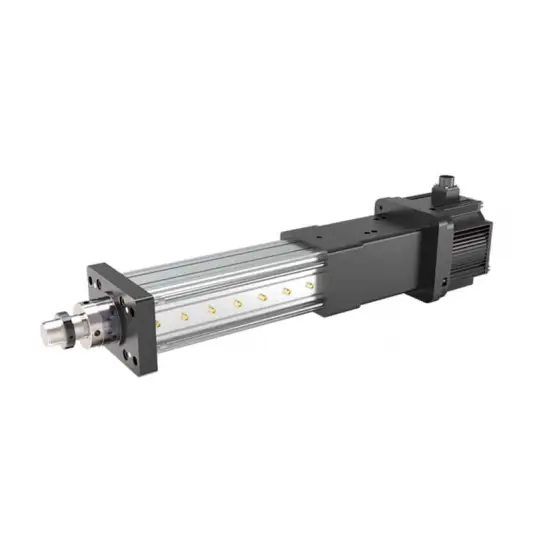

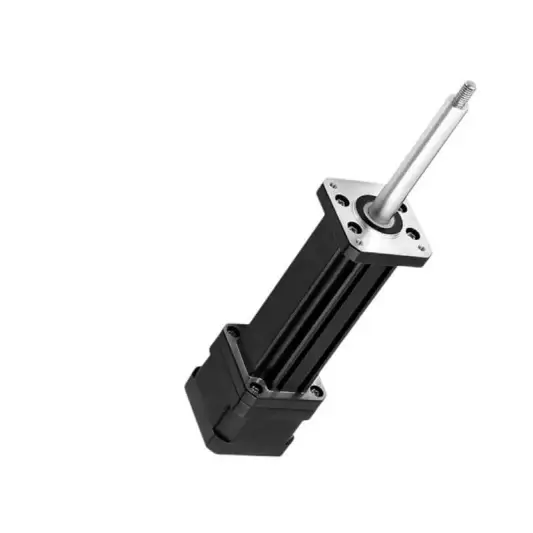

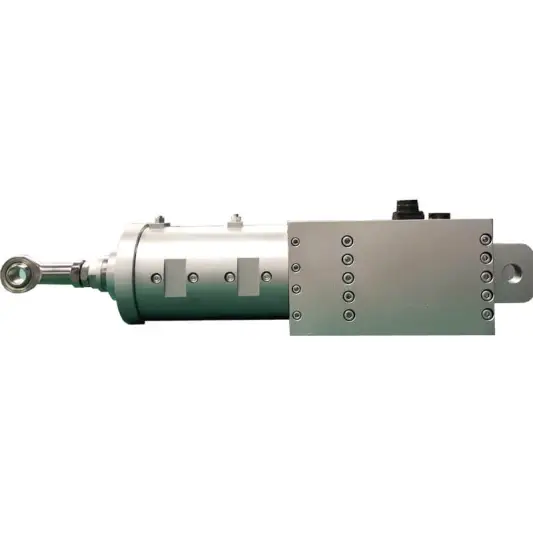

SEC series inline servo cylinder

SEC series linear servo cylinder are made with inline structure. Servo motor straight mounted with ball bearing and coupling to drive the screw spindle. Servo electric cylinder can replace hydraulic cylinder and pneumatic cylinder completely with the advantages of energy conservation and environmental protection and easily connected to PLC control system to achieve high precision motion control.

Inquire Now Next Product

Product Description

Features:

Motor Type: Servo motor/Stepper motor

Push/pull load: 0.01-200kN

Stroke Length: 50-1000mm

Drive Screw Type: Acme Screw/Ball Screw

Speed: Up to 1000mm/s

Temperature: -40℃- 85℃

Duty Cycle: 30%-100%

Type of Protection: IP54

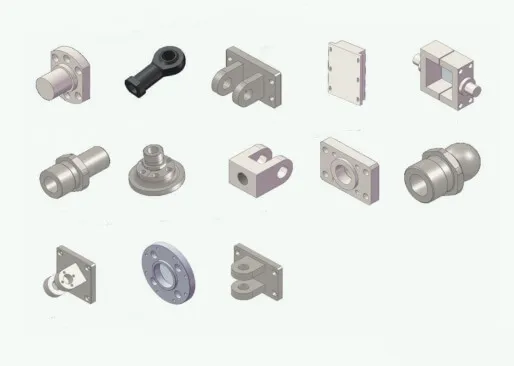

The front attachments, mounting flange, bottom attachments CNC as following selection:

Typical Model Data:

Model	Screw Pitch (mm)	Load Range (kN)	Input Power (kW)	Input Speed (rpm)	Load Speed (mm/s)	Stroke (mm)	Max Load (kN)	Duty Cycle (%)
SEC50	4/5/10	0.01-1	0.1-0.4	3000	200-500	20-600	1.5	25-100
SEC60	5/10/16	0.01-4.49	0.2-1	3000	250-800	10-800	5	30-100
SEC75	5/10/20	0.01-10	0.4-1.5	3000	250-1000	20-1000	8	30-100
SEC80	5/10/20	0.01-15	0.75-2	3000	166-1000	20-1500	15	30-100
SEC94	5/10/20	0.01-25	1-3.5	2000	166-666	50-1500	30	30-100
SEC120	10/20	0.1-40	2-5.5	1500/2000	250-667	50-1000	40	30-100
SEC140	10/20	1-60	3-7.5	1500	250-500	30-1000	70	50-100
SEC168	10/20	1-100	5.5-15	1500	250-500	50-1000	120	50-100
SEC220	20	10-200	7.5-22	1500	500	50-1000	200	50-100
