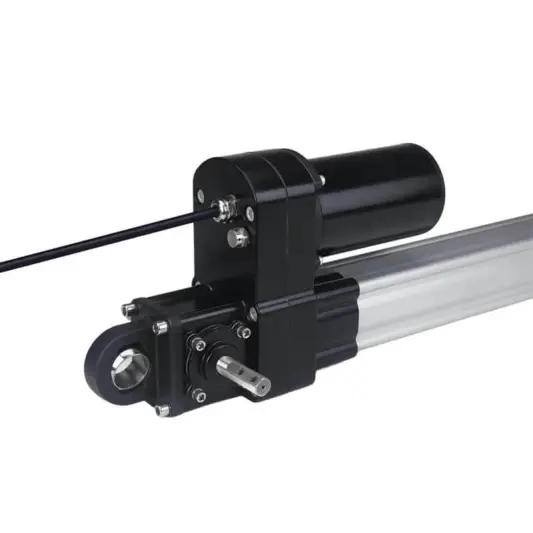

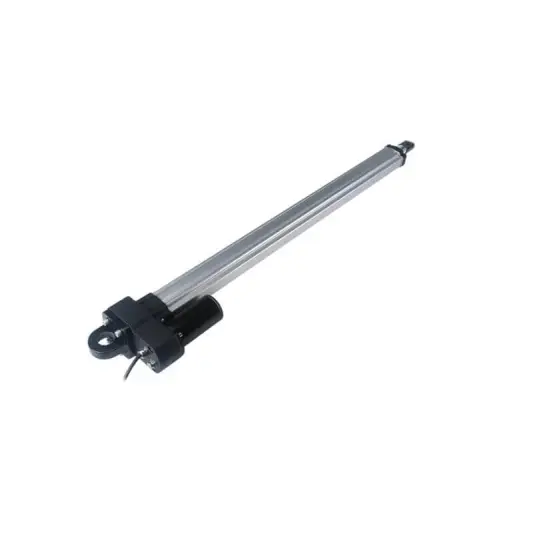

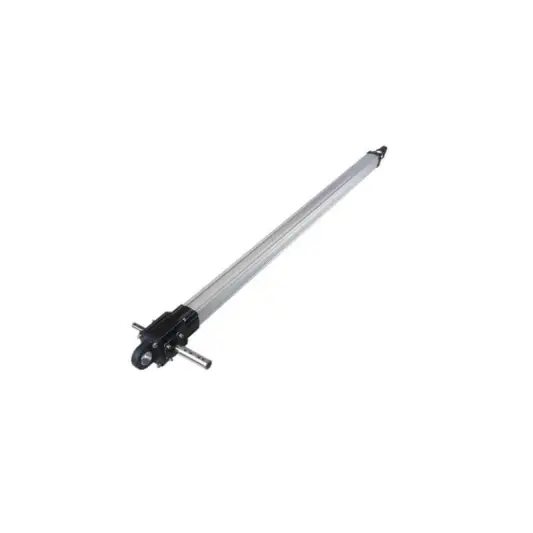

Product Description
Features:
Motor Type: DC brush motor, stepper motor, servo motor
Input Voltage: 24V/36V
Dynamic Loading Capacity: 500Kg-5000Kg
Static Loading Capacity: 1500Kg- 10,000Kg
Standard Stroke Length: 450mm/600mm/800mm/1000mm
Drive Screw Type: Acme/ Ball Screw
Full-loading Speed: 0.5-3.5mm/s
Limit Switch: Built-in
Feedback: Hall sensor/encoder
Retracted Length: flexible from 500-1200mm
Front Hole Diameter: 16mm-25mm
Rear Hole Diameter: 12mm-60mm
Temperature: -40℃- 65℃
Duty Cycle: 20%
Life Time：Above 20 years
Typical model data
|
Model |
Voltage (V) |
Dynamic Load (Kg) |
Static Load (Kg) |
No- Load Speed (mm/s) |
Load Speed (mm/s) |
No-load Current (A) |
Load Current (A) |
Stroke
(mm) |
Installation Length (mm) |
Noise
(dB) |
|
SLA1500-1 |
24 |
1500 |
3500 |
2 |
1.5 |
2.4 |
≤ 12 |
370 |
651 |
≤ 70 |
|
SLA1500-2 |
24 |
1500 |
3500 |
2 |
1.5 |
2.4 |
≤ 12 |
600 |
880 |
≤ 70 |
|
SLA3000-1 |
24 |
3000 |
8000 |
1.25 |
1 |
1.5 |
≤ 13 |
600 |
1010 |
≤ 75 |
|
SLA3000-2 |
24 |
3000 |
8000 |
1.25 |
1 |
1.5 |
≤ 13 |
800 |
1210 |
≤ 75 |
|
SLA5000-1 |
24 |
5000 |
15000 |
1.25 |
1.1 |
1.5 |
≤ 13 |
450 |
885 |
≤ 75 |
|
SLA5000-2 |
24 |
5000 |
15000 |
1.25 |
1.2 |
1.5 |
≤ 13 |
600 |
1035 |
≤ 75 |

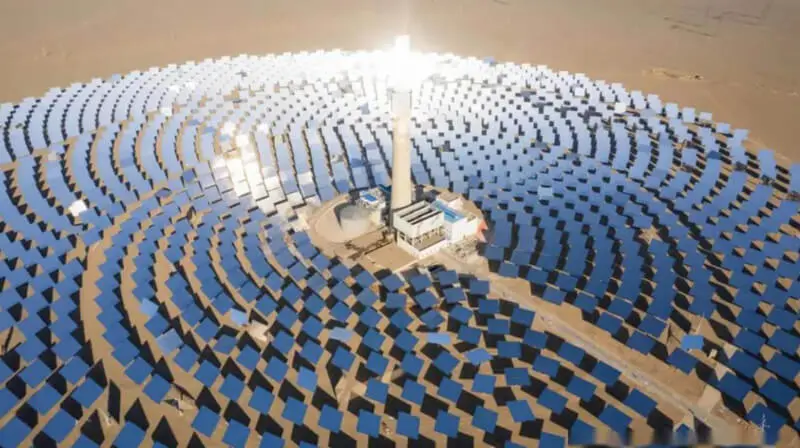

Heliostats Project:

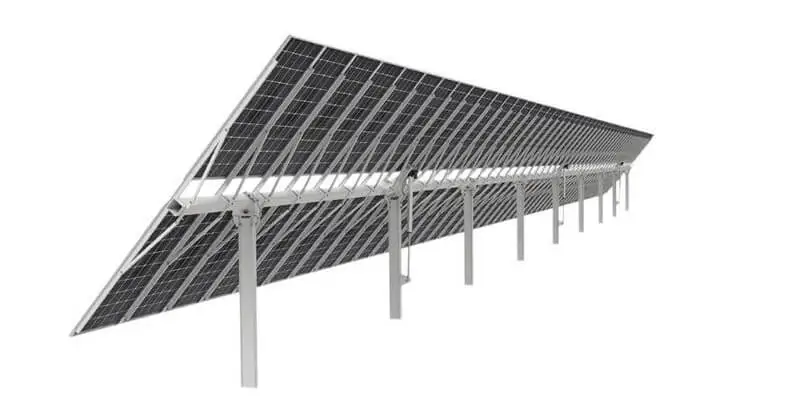

Single Tracking Systems:

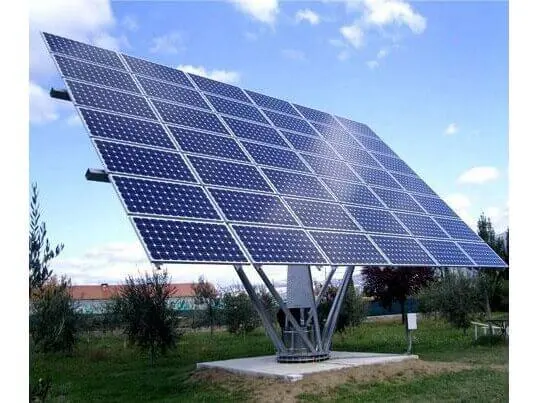

Double Tracking Systems:
