Product Description

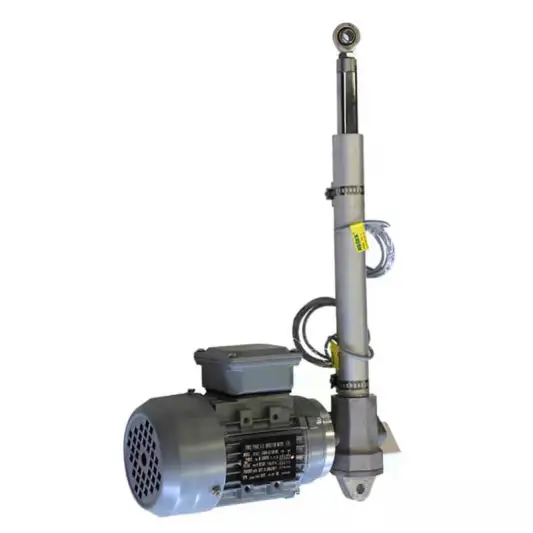

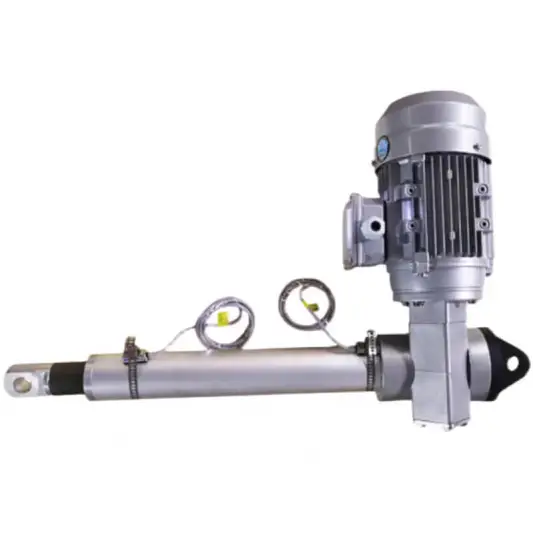

Compact design where the operating part and the motor part are right angle. Input motor flange suit for European standard IEC B14 mounting. Optimum for agricultural machine, multistory car parking, food machine, incineration equipment and more.
Features:
Motor Type: 380/220V AC 3-phase motor
Push/pull load: 0.05-200kN
Stroke Length: 100-1000mm
Drive Screw Type: Acme Screw/Ball Screw
Speed: Up to 130mm/s
Temperature: -40℃- 85℃
Duty Cycle: 30%-100%
Type of Protection: IP54
Typical model data
|
Model
|
Speed
(mm/s) |
Rated Load (kN) |
Motor
|
Ratio
|
Rated Current (A) |
Weight
(KG) |
Add Weight per Stroke 100mm (KG) |
|
WEC22 |
5.5-30 |
0.5-14 |
0.06kW 2800 380V 50HZ |
N1/N2/L1/L2 |
0.16-0.35 |
2 |
0.3 |
|
WEC25 |
7-37 |
1-3 |
0.09kW 2800 380V 50HZ |
N1/N2/L1/L2 |
0.17-0.35 |
3.2 |
0.4 |
|
WEC28 |
1.9-93 |
0.6-4 |
0.12kW 2800/1400 380V 50HZ |
.N1/N2/L1/L2/V1/V2/H1/H2/XL1 |
0.11-0.4 |
5.1 |
0.3 |
|
WEC32 |
1.9-93 |
0.83-6 |
0.18kW 2800/1400 380V 50HZ |
N1/N2/L1/L2/V1/V2/H1/H2/XL1 |
0.12-0.38 |
5.8 |
0.5 |
|
WEC35 |
4-93 |
1.3-10 |
0.25kW 2800 380V 50HZ |
N1/N2/L1/L2/V1/V2 |
0.16-0.37 |
7.4 |
0.8 |
|
WEC40 |
4.5-93 |
3-12 |
0.55kW 2800 0.37kW 1400 380V 50HZ |
N1/N2/L1/L2/V1/V2 |
0.17-0.37 |
12.9 |
0.9 |
|
WEC56 |
5.5-93 |
11-25 |
2.2kW 2800 1.5kW 1400 380V 50HZ |
N1/N2/L1/L2/V1/V2 |
0.15-0.35 |
40 |
2 |
|
WEC63 |
5.5-89 |
15-50 |
3kW 2800 2.2kW 1400 380V 50HZ |
N1/N2/L1/L2/V1/V2 |
0.15-0.34 |
70 |
4 |
|
WEC80 |
11-134 |
14-80 |
3kW 1400 4kW 1400 380V 50HZ |
N1/N2/L1/L2/V1/V2/XV1/XV2 |
0.16-0.35 |
140 |
6 |
|
WEC120 |
7.5-77 |
35-125 |
7.5kW 1400 5.5kW 950 380V 50HZ |
N1/N2/L1/L2/H1/H2 |
0.16-0.35 |
310 |
9 |
|
WEC200 |
7.5-77 |
48-200 |
11kW 1400 7.5kW 950 380V 50HZ |
N1/N2/L1/L2/H1/H2 |
0.14-0.34 |
450 |
13 |
