Product Description
Motor Performance data:
Vol/Freq: 110-230V AC/50-60Hz
Rated Speed: 7800-15000RPM
Rated Power: 27W-55KW
Insulation Class: B F H

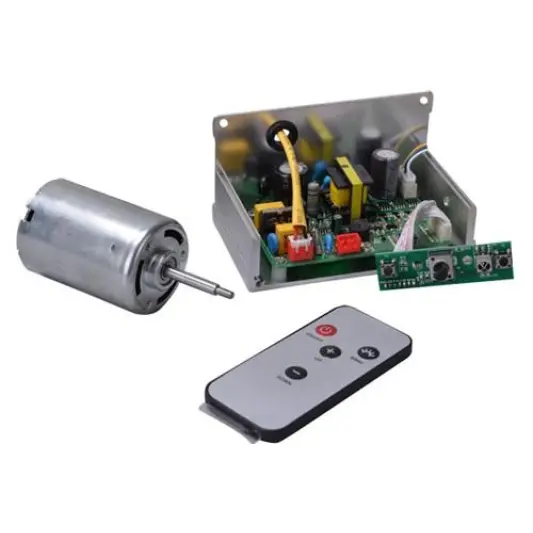

Controller Performance Data:
Operating voltage: AC 110V-AC 230V
Rated Current: 0.2A
Rated Power: 35W
Control mode: Open loop sensorless speed control
Protection from over-current and short circuit and buzzing alarm.
Manual and remote control of fan start/stop, acceleration/deceleration, and head shake about 5m from a fan.
Typical Model Performance
|
Type |
Voltage |
No-load |
load |
|||||
|
|
Voltage |
Rated |
Speed |
Current |
Speed |
Current |
P |
Max Eff. |
|
|
Range |
Voltage |
|
|
|
|
|
(%) |
|
|
(V) |
(V) |
（RPM) |
（A） |
（RPM) |
（A） |
（W） |
|
|
BL43-01 |
210-230/AC |
220/AC |
9100 |
0.04 |
7800 |
0.24 |
27 |
70 |
|
BL43-02 |
90-120/AC |
110/AC |
9100 |
0.1 |
7800 |
0.28 |
29 |
65 |
|
BL43-03 |
210-250/AC |
230/AC |
14500 |
0.08 |
12400 |
0.25 |
55 |
60 |

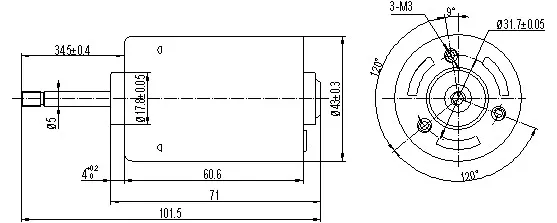

Size Drawing:
