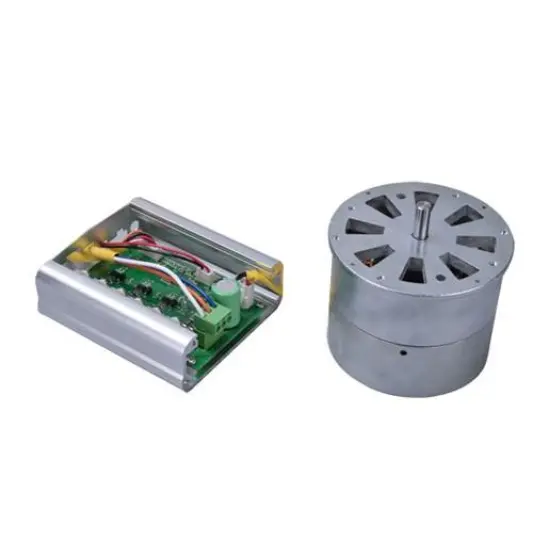

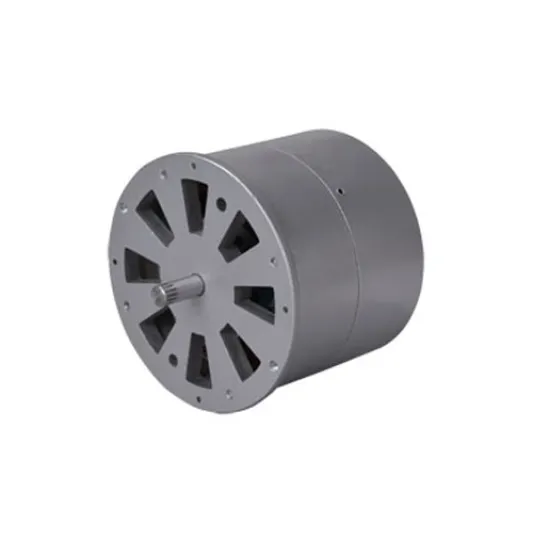

BL92 series BLDC motor

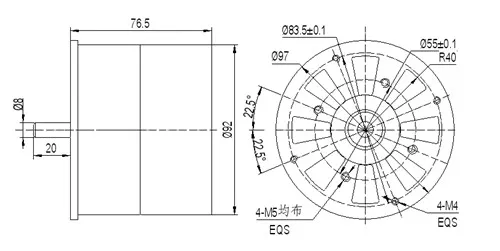

Compared with other BLDC motor series, BL92 series are big BLDC motor series with 92mm diameter. They are mainly used for centrifuge blower, massage comfortable equipment, smoke exhaust and scooter. The control model use sensor speed close loop control. The loading max power can be 110w.

Inquire Now Next Product

Product Description

Motor Performance data:

Vol/Freq: 12-24V DC/220V AC/50-60Hz

Rated Speed: 1300-3600RPM

Rated Power: 90-110W

Insulation Class: B F H

Typical model performance

Type	Voltage		No-load		load
	Voltage	Rated	Speed	Current	Speed	Current	P	Max Eff.
	Range	Voltage						(%)
	(V)	(V)	（RPM)	（A）	（RPM)	（A）	（W）
BL92-01	10-15/DC	12/DC	1300	0.8	1300	7.5	90	79
BL92-01	19-28/DC	24/DC	1700	0.8	1700	4	96	82
BL92-01	210-250/AC	220/AC	4700	0.1	3600	1	110	83
