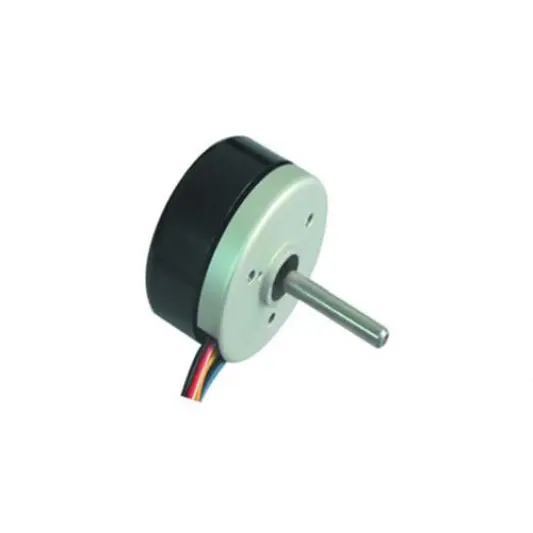

BL43E brushless dc outrunner motor

BL43E series BLDC motor designed with outrunner rotor structure. Mainly used for air pump, air drier, radiator fan application. 3 phase brushless dc motor type. Power supply from 12-48V dc. They are also widely used for muscle massage gun. Small size and cheap BLDC motor option.

Inquire Now Next Product

Product Description

Motor Performance data:

Vol: 12-48V DC

Rated Speed: 3000-5000RPM

Rated Power: 30W-40KW

Insulation Class: B F H

Typical model performance

Type	Voltage		No-load		load
	Voltage	Rated	Speed	Current	Speed	Current	P	Max Eff.
	Range	Voltage						(%)
	(V)	(V)	（RPM)	（A）	（RPM)	（A）	（W）
BL43E-1	10-14/DC	12/DC	3200	0.2	3200	3.5	30.5	73
BL43E-2	22-26DC	24/DC	3200	0.1	3200	1.7	30.5	75
BL43E-3	48-52/DC	48/DC	3200	0.05	3200	0.8	30.5	75
