BL66 series BLDC motor

BL66 series BLDC motor designed for cloth cutter, fitness equipment and rotary equipment. Using ball bearing, permanent magnet with NdFeB type, high performance silicon steel sheet to keep high quality BLDC motor working in your project.
BL66 series BLDC motor

Product Description

Motor Performance data:



Vol: 12-36V DC

Rated Speed: 1860RPM

Rated Power: 20W-30KW

Insulation Class: B F H





Typical model performance



  Type

Voltage

No-load

load



Voltage

Rated

Speed

Current

Speed

Current

P

Max Eff.



Range

Voltage











(%)



(V)

(V)

RPM)

A

RPM)

A

W



BL66-01

10-14/DC

12/DC

1860

0.5

1860

2.8

21.8

80

BL66-02

22-26/DC

24/DC

1860

0.25

1860

1.4

21.8

80

BL66-03

34-38/DC

36/DC

1860

0.12

1860

0.7

21.8

80

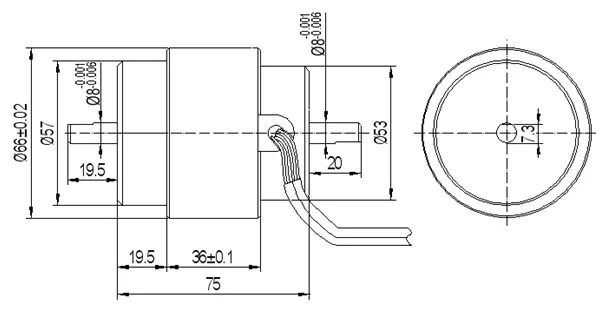

Size Drawing:
