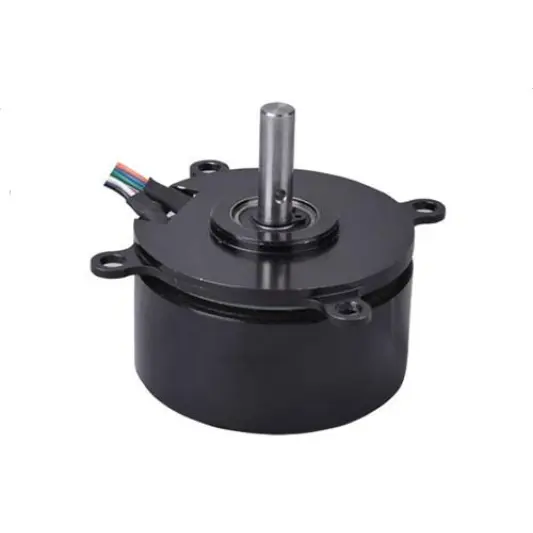

BL65 outer rotor BLDC motor

BL65 series outer rotor BLDC motor designed for air pump, compression pump, water pump, fish oxygen generator pump and other pump. Compared with the dc brush motor, BL65 series motor have better efficiency and can match with controller to receive more smart function. A good replacement for the traditional dc brush motor and AC induction motor in the pump drive.

Inquire Now Next Product

Product Description

Motor Performance data:

Vol./Freq: 48-155V DC or 220V AC/50-60Hz

Rated Speed: 3000-4500RPM

Rated Power: 20W-50KW

Insulation Class: B F H

Typical model performance

Type	Voltage		No-load		load
	Voltage	Rated	Speed	Current	Speed	Current	P	Max Eff.
	Range	Voltage						(%)
	(V)	(V)	（RPM)	（A）	（RPM)	（A）	（W）
BL65-01	100-200/DC	155/DC	4100	0.1	3000	0.3	45	80
BL65-02	44-52/DC	48/DC	3800	0.3	3000	1	34	81
BL65-03	190-250/AC	220/AC	3800	0.1	3000	0.3	46	81
