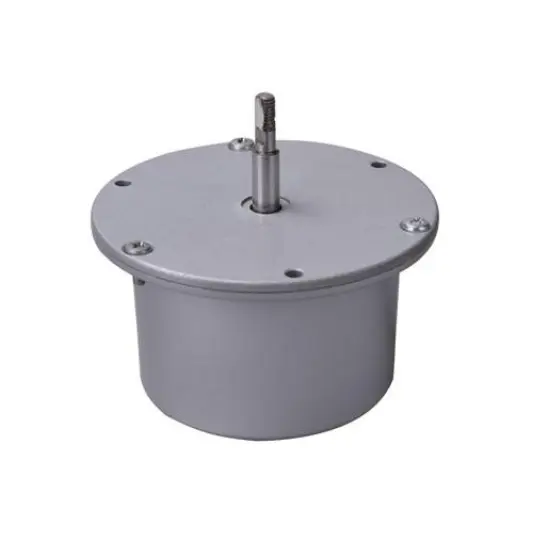

BL77 series BLDC motor

Most of traditional equipment use AC shaded pole induction motor during the HVAC systems (heating, ventilation and air conditioning). BL77 HVAC BLDC motor is a perfect replacement to save more energy. The efficiency reach 78
% at least. BL77 series motor mainly used for water heater, burner, heat exchanger, compression pump, air conditioner.
BL77 series BLDC motor

Product Description

Motor Performance data:



Vol./Freq: 110-230V AC/50-60Hz

Rated Speed: 3000-6000RPM

Rated Power: 80W-110W

Insulation Class: B F H





Typical model performance



  Type

Voltage

No-load

load



Voltage

Rated

Speed

Current

Speed

Current

P

Max Eff.



Range

Voltage











(%)



(V)

(V)

RPM)

A

RPM)

A

W



BL77-01

210-230/AC

220/AC

5000

0.2

3000

0.48

80

77

BL77-02

220-250/AC

230/AC

7000

0.3

6000

0.8

110

76

BL77-03

90-120/AC

110/AC

5000

0.4

3000

1

80

77

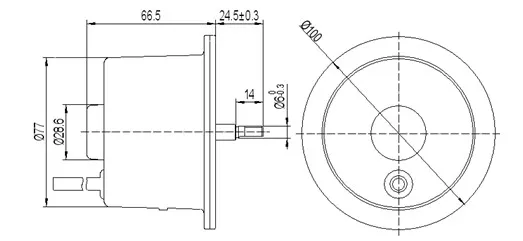

Size Drawing:
